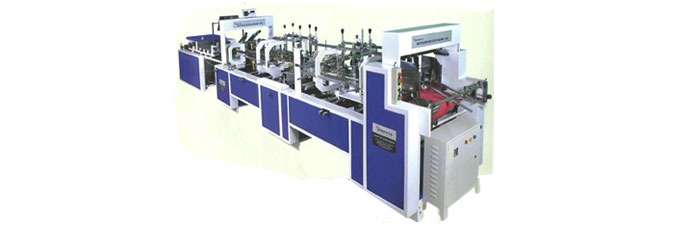

Cartoon feeding unit with electromagnetic clutch operated with electrical control. This gives freedom of switching off the feeder while the machine is still running. feeding belt and 2 nos. carton control knife with 2 nos. side support and 2 nos. carton shaking holder controlled by spring tension.
In the pre folding unit, the creasing lines, 1 and 3 of the blank are pre-folding by 180 both side and lay flat again. This operation is vital and easy to open the folded box.
4 nos. pressure track unit fabricated by 16 mm M S plate with hi-speed spring loaded ball bearing. All track connected with screw rod with hand lever operated, 2 nos. gum tank with wheel for lock bottom system, A & B Type Lock Bottom cartoon with wheel for side pasting with pressure adjustment system. 2 nos. side pasting belt, with 2 nos. dispatcher, etc.
Carton pressure delivery fabricated by 16mm M S Plate with 16” conveyor width with independent pressure roller with moving system and 3.5 mts long carton pressure delivery unit. 1 no. glass mirror 2 x 2 ft fitted on delivery table, so that you can see the final pasting from front side. 3 x 2.5 ft cartoon tray and pressure delivery with emergency stop. Superior Paint finished, STD tools box & accessories.
Automatic Gluing System (HHS German Make) Automatic gluing system with 3 guns with electronic sensor pneumatically controlled 1 Hp Air compressors for pneumatic system, Digital program panel this system suitable for Hi-speed lock bottom pasting. (HHS German make) auto gluing.
| Model | 35cm | 45cm | 65cm | 75cm | 85cm |
| Convertible Material | Solid Board | Solid Board | Solid Board | Solid Board | Solid Board |
| Maximum Open Blan | 35cm | 45cm | 65cm | 75cm | 85cm |
| Minimum Open Blan | 6cm | 6cm | 6cm | 6cm | 6cm |
| AC Drive Motor | 5hp | 5hp | 7.5hp | 7.5hp | 10hp |
| Variable Control Panel | 3.75kw | 3.75kw | |||
| Line Speed | 250mtrs (800ft)/min | 250mtrs (800ft)/min |
250mtrs (800ft)/min |
250mtrs (800ft)/min |
200mtrs (700ft)/min |
| M/C Length | 25' | 26' | 27' | 28' | 30' |
| M/C Width | 3' | 4' | 4.5' | 5' | 5.5’ |
| Weight | 3500kg Approx | 3800kg Approx | 4200kg Approx | 4500kg Approx | 5000kg Approx |
| Side Body | 16mm |
18mm | 20mm | 20mm | 20mm |
| Minimum | 10cm/L | 10cm/W | 10cm/L | 10cm/W | 10cm/L |
| Open Blank | 10cm/w |
10cm/L | 10cm/w | 15cm/L | 12cm/W |
